Technical Drawings

These are technical drawings made in my design engineering class at Pratt Institute.

Coffee Maker

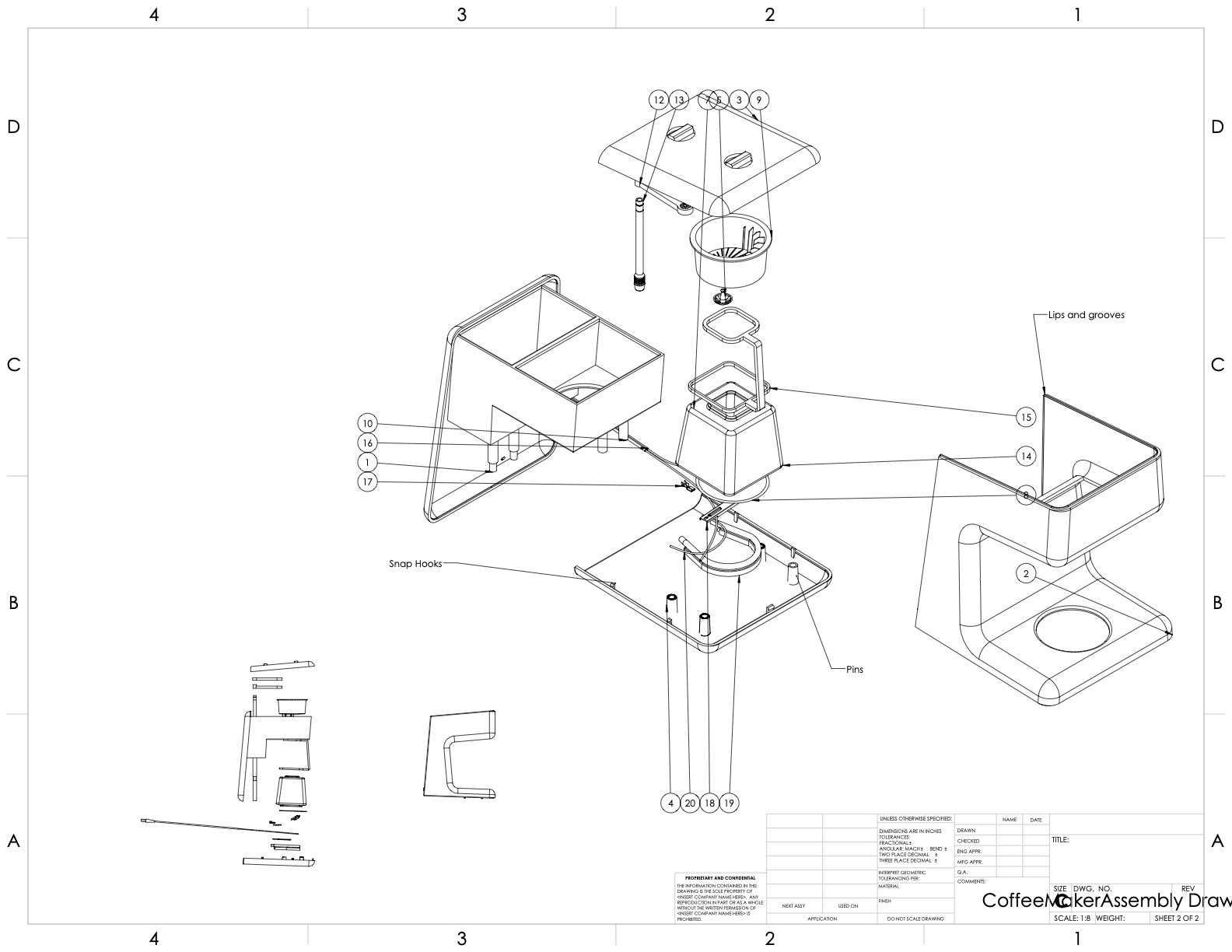

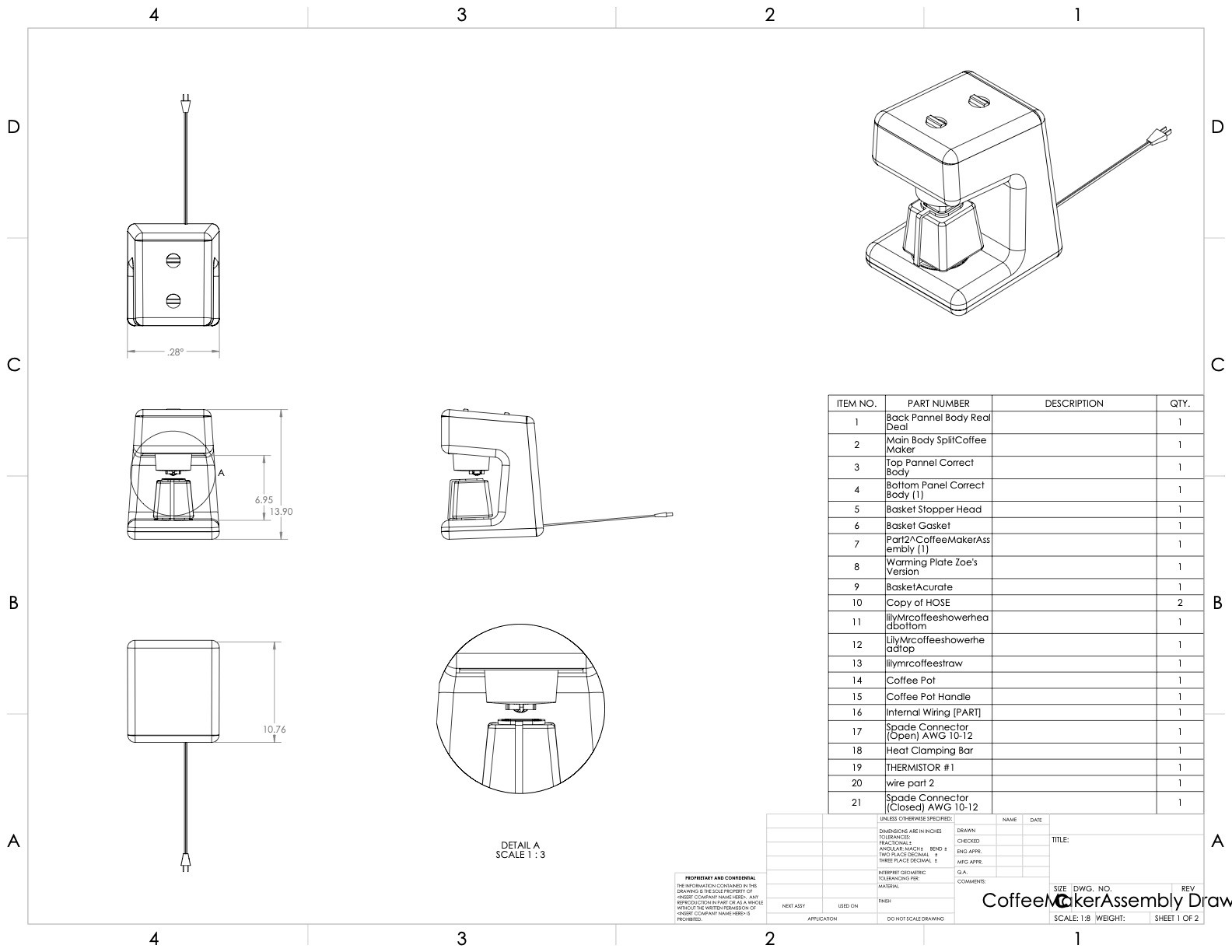

For this project, we took a standard coffee maker and deconstructed it and then modeled all the parts in solid works. We were allowed to design our own housing for the machine however all the necessary internal components had to be there.

jbsjknsanasknknasjknkas


Water Bottle

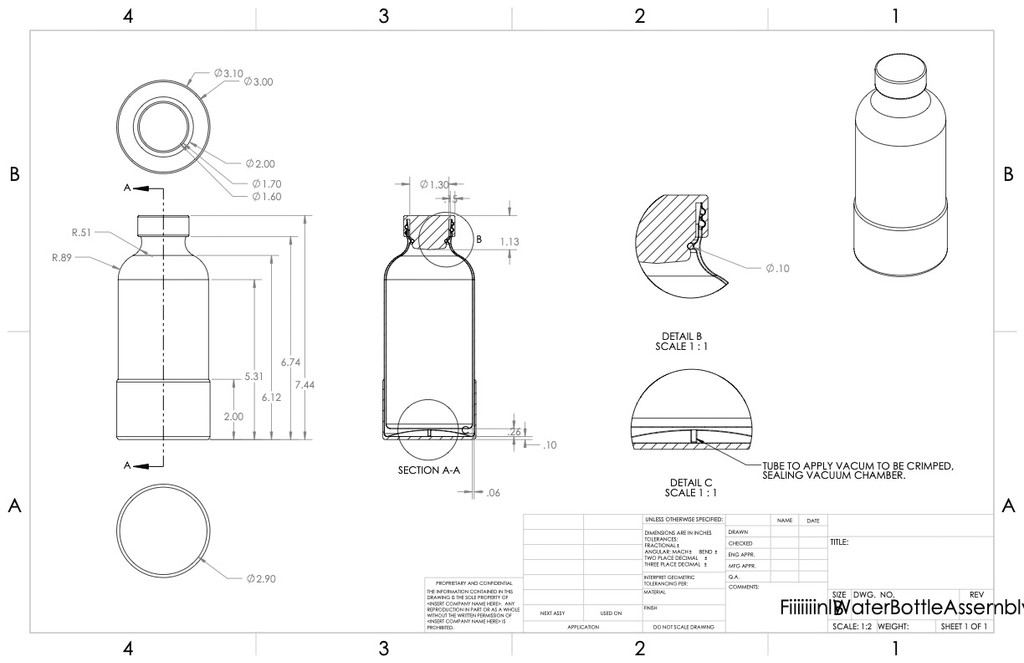

For this project, we were tasked with modeling a stainless steel insulated water bottle. We could make the form however we liked as long as it used the proper properties and machining features of stainless steel.

Table

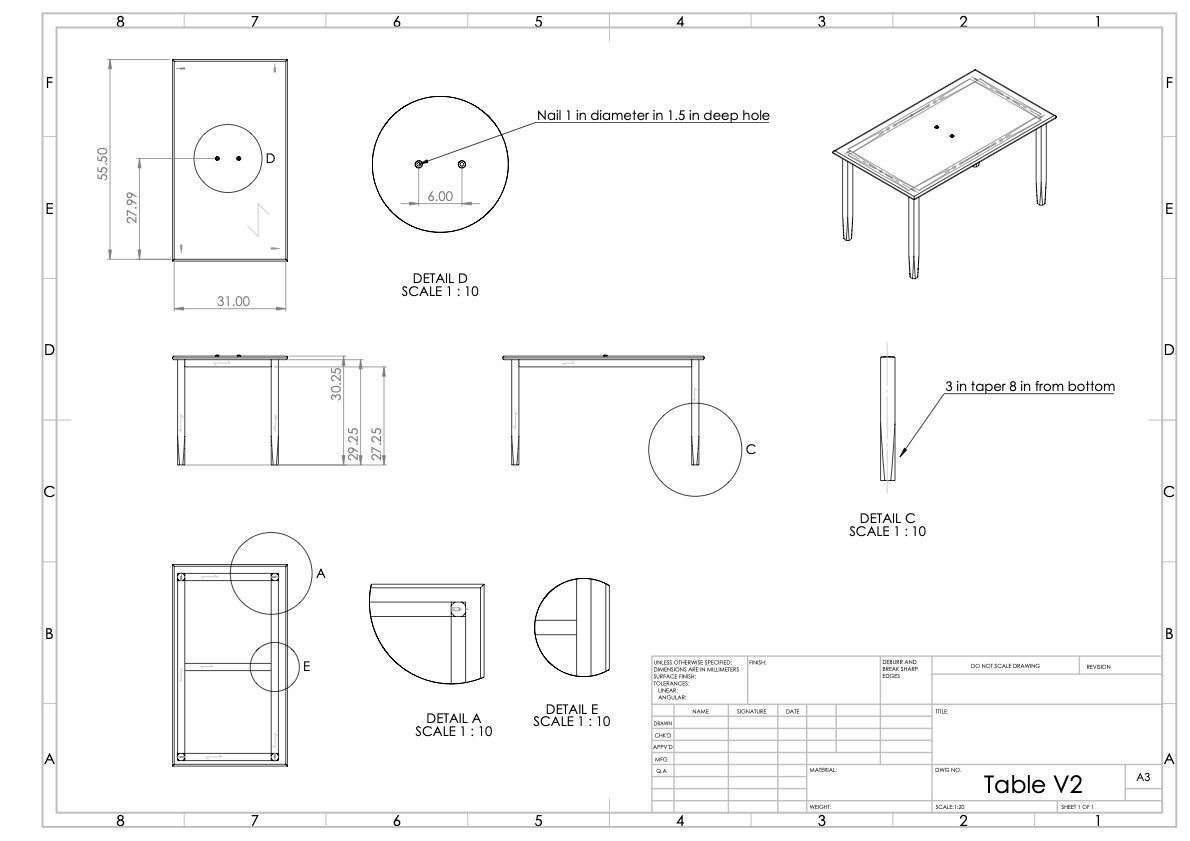

This was one of my first technical drawings it is a wooden table with fasteners.
